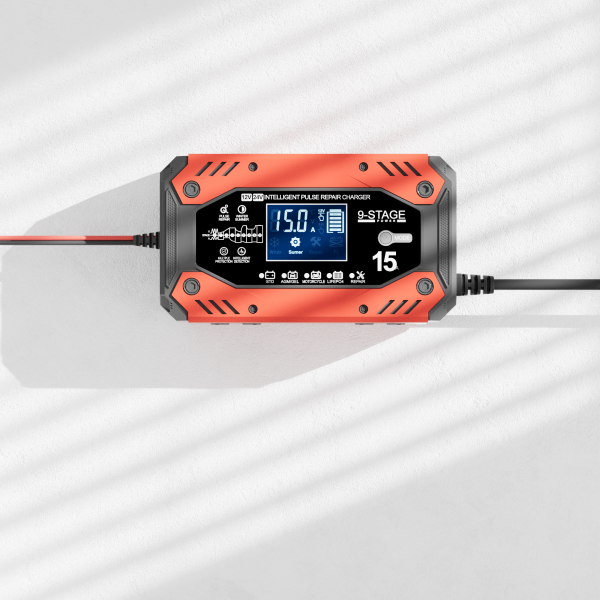

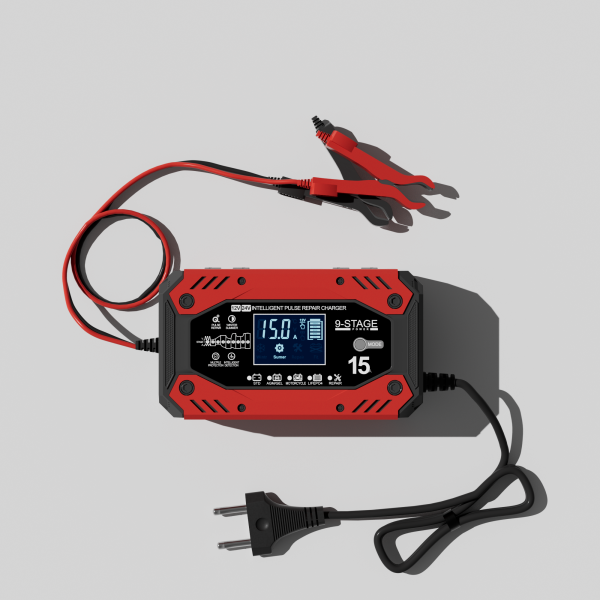

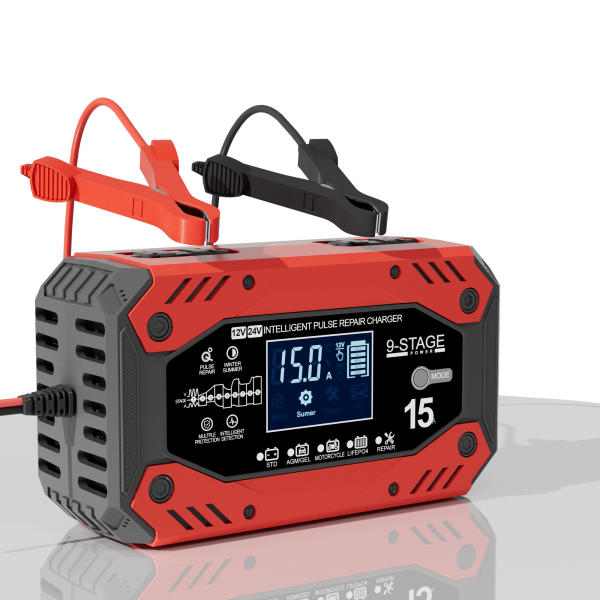

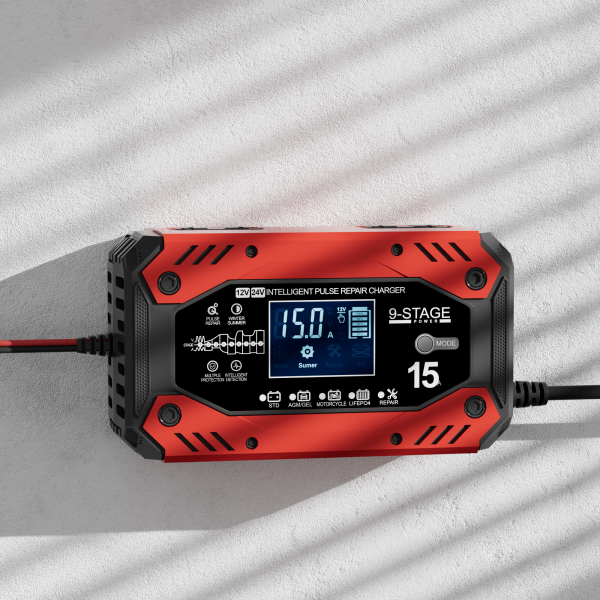

12V /24v 15A smart battery charger&maintainer 240W H-15CD

· LCD screen ,displays the charger in real time.
·Multiple mode with one button，easy to operate .
·Automatic power maintainer.
·Anti reverse connection protection.
·Flame retardant material.
·multiple color of shell available.
·The clamps can be customized.
分类：
Input Characteristic
Minimum Nominal Maximum
Input Voltage 90Vac 100Vac~240Vac 264Vac
Input Frequency 47Hz 60Hz/50Hz 63Hz
Output Characteristics
Output Rated Load Output Range



 R+N



 Remark


Rate Min. Load Max. Load
12V/24v 0.0A 15A/7.5A 3.3V ~15.5V/16V ~29.6V 300mVp-p
Maximum output power:240W



Models of the clamp for now available （can be customized）：

· 61CM Patent Clamps（Standard length）/120CM Patent Clamps (With XT30 detachable plug、M6 connecting ring )



· 61CM Global clamps(standard length)





The length of the power cord can be selected：

· 70CM(standard length）/ 90CM/120CM/150CM/200CM





Details of the connecting port:
